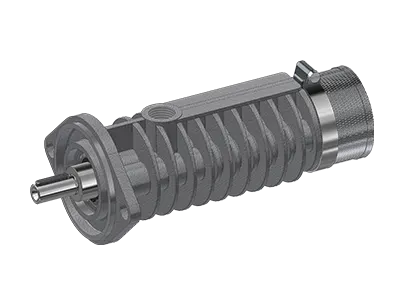

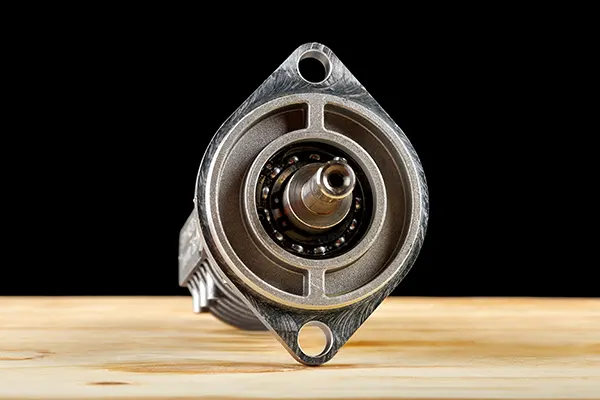

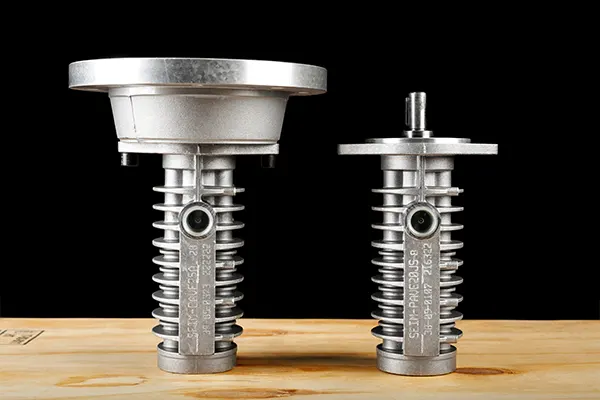

PAVE Male Shaft

PA Series are the pumps for Flowrate upto 850 LPM and discharge pressure upto 60 Bar Contineous or 80 Bar Intermittent. The body is made from specially & specifically sourced alluminium material with imprenation of special compound during die casting. The ribs are specially designed to reduce the noise. The screws are made from carbon steel material and the suction filter Mesh is of DIN 791 0.8 mm Dia Hole in carbon steel material with clipped on using galvanized steel hose clip.

The pump as per EU Standard Lift Connection. The pumps always run in clockwise direction from pump shaft end. The degree of filtration recommended is as per ISO4406 Coe 20/18/15 or NAS 10. The pumping temperature should be between 0 deg C to 100 deg C and should not be exceeded. The pumping oil viscosity should be between 10 cst to 400 cst. The pump must remain immersed or submerged in oil under all the circumstances.
